回顾常规的强化学习场景
- 目标定义：
$$
\begin{align}
J(\theta) &= \mathbb{E}_{\tau\sim \pi_\theta}[R(\tau)] \\
&= \mathbb{E}_{s_0, a_0,\ldots \sim \pi_\theta}\Big[\sum\limits_{t=0}^{\infty}\gamma^t r(s_t, a_t) \Big] \\
&= \sum_{t=0}^\infty \mathbb{E}_{(s_t,a_t) \sim \rho_{\pi_\theta}} [r(s_t, a_t)]
\end{align}
$$- 第一行是普通PG方法推导的写法，最贴近本质
- 第二行是TRPO文章的写法，是第一行的展开形势
- 第三行这里 \(\sum_{t=0}^T \mathbb{E}_{(s_t,a_t) \sim \rho_{\pi_\theta}} [r(s_t, a_t)]\) 的写法是Soft Q-Learning 论文 和 SAC 论文提出来的，和之前TRPO等文章写法都不同，这里从第二行到第三行的变换可以理解为积分和求和交换顺序的写法，从状态 \(s_0\) 开始， \((s_t,a_t)\) 都是按照策略 \(\pi_\theta\) 执行下去可能遇到的概率分布
- Q值定义：
$$
\begin{align}
Q^\pi(s_t,a_t) &= \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=0}^\infty\gamma^lr(s_{t+l}, a_{t+l})\Big] \vert_{(s_t,a_t)} \\
&= r(s_t, a_t) + \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=1}^\infty\gamma^lr(s_{t+l}, a_{t+l})\Big] \vert_{(s_t,a_t)} \\
&= r(s_t, a_t) + \sum\limits_{l=1}^\infty \mathbb{E}_{(s_{t+l},a_{t+l}) \sim \rho_\pi}[\gamma^lr(s_{t+l}, a_{t+l})] \vert_{(s_t,a_t)}
\end{align}
$$- “ \(\vert_{(s_t,a_t)}\) “表示条件概率，一般来说，不引起歧义的情况下，也可以省略” \(\vert_{(s_t,a_t)}\) “
- V值定义：
$$
\begin{align}
V^\pi(s_t) &= \mathbb{E}_{a_t,s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=0}^\infty\gamma^lr(s_{t+l}, a_{t+l})\Big] \vert_{(s_t,a_t)} \\
&= \mathbb{E}_{a_t \sim \pi}[Q^\pi(s_t, a_t)]
\end{align}
$$
Soft Q-Learning
- 目标定义
$$ J(\phi) = \sum_{t=0}^T \mathbb{E}_{(s_t, a_t) \sim \rho_{\pi_\phi}} [r(s_t, a_t) + \alpha \mathcal{H}(\pi_\phi(.\vert s_t))] $$- 这里目标中增加的熵就是Soft名字的来源，这里相对标准的强化学习，仅增加了 \(\alpha \mathcal{H}(\pi_\phi(.\vert s_t))\) 为额外目标，后续在不引起歧义的情况下，我们也用 \(\alpha \mathcal{H}(\pi_\phi(s_{t}))\) 来表示，且为了方便，后续推导中常常会视为 \(\alpha=1\)，这里可以通过奖励和熵同时乘以 \(\frac{1}{\alpha}\) 来变换得到
- Soft Q值定义
$$
\begin{align}
Q_{\text{soft}}^\pi(s_t, a_t) &= r(s_t, a_t) + \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=1}^\infty\gamma^l(r(s_{t+l}, a_{t+l}) +\alpha\mathcal{H}(\pi(s_{t+l})))\Big] \\
&= r(s_t, a_t) + \sum\limits_{l=1}^\infty \mathbb{E}_{(s_{t+l},a_{t+l}) \sim \rho_\pi}[\gamma^l(r(s_{t+l}, a_{t+l}) + \alpha\mathcal{H}(\pi(s_{t+l})))]
\end{align}
$$- 对于 \(Q_{\text{soft}}^\pi(s_t, a_t)\) 来说，已经发生的事件是“ \((s_t,a_t)\) ”，此时 \(a_t\) 是确定的动作，对应的熵 \(\mathcal{H}(\pi(s_{t}))=0\)
- Soft V值定义，同时推导用Soft Q值表示Soft V值
$$
\begin{align}
V_{\text{soft}}^\pi(s_t) &= \mathbb{E}_{a_t,s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=0}^\infty\gamma^l(r(s_{t+l}, a_{t+l}) + \alpha\mathcal{H}(\pi(s_{t+l})))\Big] \\
&= \mathbb{E}_{a_t \sim \pi}\Big[r(s_t, a_t) + \alpha\mathcal{H}(\pi(s_{t})) + \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=1}^\infty\gamma^l(r(s_{t+l}, a_{t+l}) +\alpha\mathcal{H}(\pi(s_{t+l})))\Big]\Big] \\
&= \mathbb{E}_{a_t \sim \pi}\Big[r(s_t, a_t) + \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=1}^\infty\gamma^l(r(s_{t+l}, a_{t+l}) +\alpha\mathcal{H}(\pi(s_{t+l})))\Big] + \alpha\mathcal{H}(\pi(s_{t}))\Big] \\
&= \mathbb{E}_{a_t \sim \pi}[Q_{\text{soft}}^\pi(s_t, a_t)] + \alpha\mathcal{H}(\pi(s_{t})) \\
&= \mathbb{E}_{a_t \sim \pi} [Q_{\text{soft}}^\pi(s_t, a_t)] - \alpha \mathbb{E}_{a_t \sim \pi} [\log \pi(a_t \vert s_t)]\\
&= \mathbb{E}_{a_t \sim \pi} [Q_{\text{soft}}^\pi(s_t, a_t) - \alpha \log \pi(a_t \vert s_t)]
\end{align}
$$ - 推导用Soft V值表示Soft Q值
$$
\begin{aligned}
Q_{\text{soft}}^\pi(s_t, a_t) &= r(s_t, a_t) + \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=1}^\infty\gamma^l(r(s_{t+l}, a_{t+l}) +\alpha\mathcal{H}(\pi(s_{t+l})))\Big] \\
&= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=1}^\infty\gamma^{l-1}(r(s_{t+l}, a_{t+l}) +\alpha\mathcal{H}(\pi(s_{t+l})))\Big] \\
&= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1},a_{t+1},\cdots \sim \pi}\Big[\sum\limits_{l=0}^\infty\gamma^l(r(s_{t+1+l}, a_{t+1+l}) +\alpha\mathcal{H}(\pi(s_{t+1+l})))\Big] \\
&= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1} \sim \rho_{\pi}(s)} \Big[\mathbb{E}_{a_{t+1},s_{t+2},a_{t+2},\cdots \sim \pi}\Big[\sum\limits_{l=0}^\infty\gamma^l(r(s_{t+1+l}, a_{t+1+l}) + \alpha\mathcal{H}(\pi(s_{t+1+l})))\Big]\Big] \\
&= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1} \sim \rho_{\pi}(s)} [V_{\text{soft}}^\pi(s_{t+1})] \\
\end{aligned}
$$
Soft贝尔曼期望方程
- 通过上面的推导，我们可以得到，Soft贝尔曼期望方程为：
$$
\begin{aligned}
Q_{\text{soft}}^\pi(s_t, a_t) &= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1} \sim \rho_{\pi}(s)} [V_{\text{soft}}^\pi(s_{t+1})] \\
Q_{\text{soft}}^\pi(s_t, a_t) &= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1} \sim \rho_{\pi}(s)} [\mathbb{E}_{a_{t+1} \sim \pi} [Q_{\text{soft}}^\pi(s_{t+1}, a_{t+1}) - \alpha \log \pi(a_{t+1} \vert s_{t+1})]] \\
Q_{\text{soft}}^\pi(s_t, a_t) &= r(s_t, a_t) + \gamma \mathbb{E}_{s_{t+1} \sim \rho_{\pi}(s), a_{t+1} \sim \pi} [Q_{\text{soft}}^\pi(s_{t+1}, a_{t+1}) - \alpha \log \pi(a_{t+1} \vert s_{t+1})] \\
V_{\text{soft}}^\pi(s_t) &= \mathbb{E}_{a_t \sim \pi} [Q_{\text{soft}}^\pi(s_t, a_t) - \alpha \log \pi(a_t \vert s_t)] \\
V_{\text{soft}}^\pi(s_t) &= \mathbb{E}_{a_t \sim \pi}[Q_{\text{soft}}^\pi(s_t, a_t)] + \alpha\mathcal{H}(\pi(s_{t}))
\end{aligned}
$$
Soft贝尔曼最优方程
- 首先证明，在满足如下策略改进的时候(其中 \(\tilde{\pi}\))是新策略， \(\pi\) 是旧策略，
$$
\tilde{\pi}(\cdot | s) \propto \exp \left(Q_{\text{soft}}^{\pi}(s, \cdot) \right), \quad \forall s.
$$ - 策略的Soft Q值是单调的，即：
$$
Q_{\text{soft}}^{\tilde{\pi}}(s, a) \geq Q_{\text{soft}}^{\pi_{\text{old}}}(s, a) ; \forall s, a.

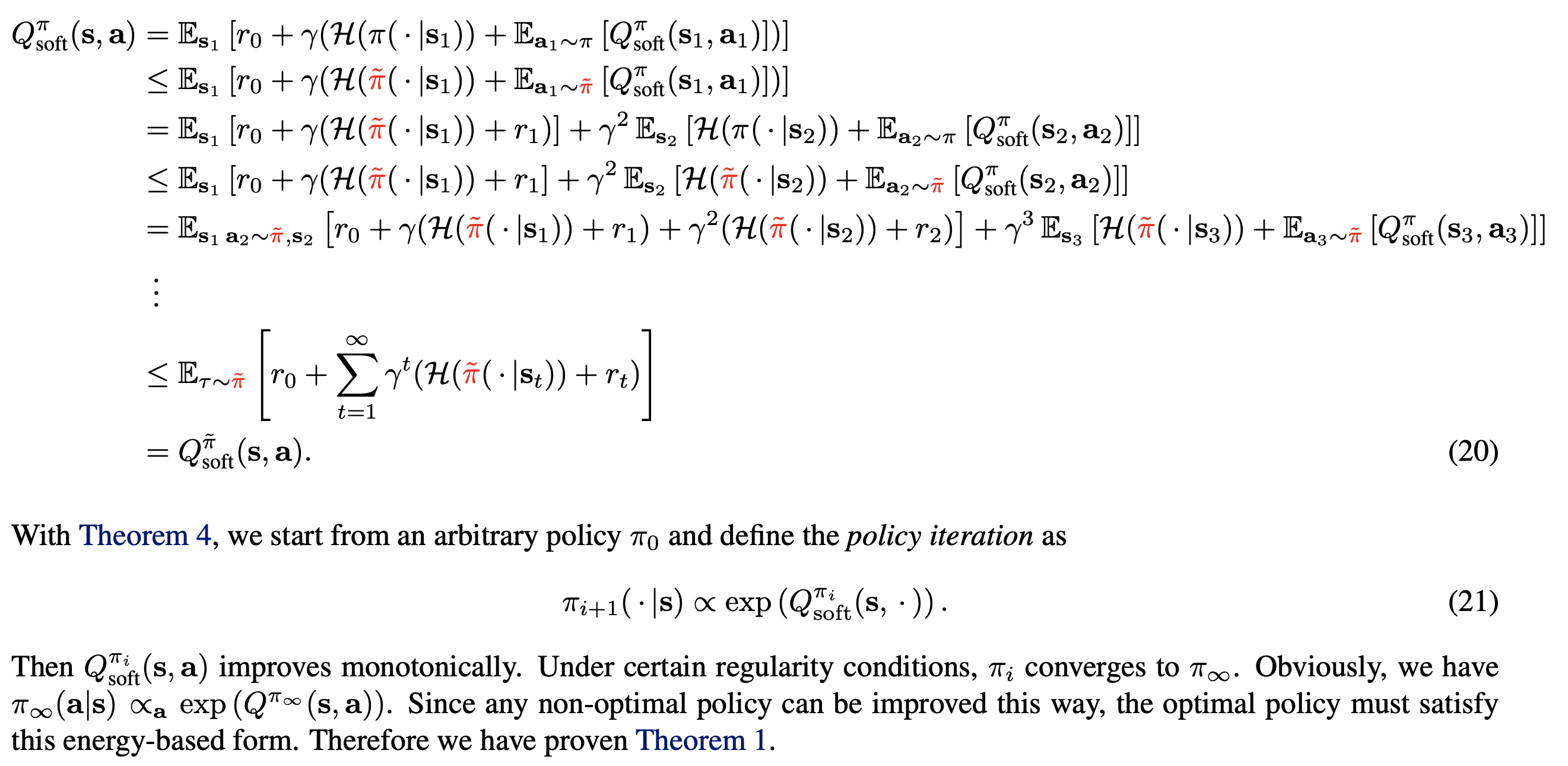

$$ - 策略的Soft Q值是单调性的证明如下：
- 以上式子证明时没有考虑温度系数 \(\alpha\)，考虑温度系数 \(\alpha\) 时在所有的熵 \(\mathcal{H}(\pi(\cdot\vert\cdot))\) 时前面都加上 \(\alpha\) 即可
- 其中使用到以下不等式 ：
$$
\mathcal{H}(\pi(\cdot\vert s)) + \mathbb{E}_{a\sim \pi}[Q_{\text{soft}}^\pi(s,a)] \le \mathcal{H}(\tilde{\pi}(\cdot\vert s)) + \mathbb{E}_{a\sim \tilde{\pi}}[Q_{\text{soft}}^\pi(s,a)]
$$ - 上面的不等式又使用到以下式子（下面的式子如何推出上面的式子待确认TODO）：
$$
\mathcal{H}(\pi(\cdot\vert s)) + \mathbb{E}_{a\sim \pi}[Q_{\text{soft}}^\pi(s,a)] = - D_{\text{KL}}(\pi(\cdot|s) || \tilde{\pi}(s, \cdot)) + \log \int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da
$$- 以上式子证明过程如下：
$$
\begin{align}
\text{right} &= - \int \pi(\cdot | s) \log \frac{\pi(\cdot | s)}{\tilde{\pi}(\cdot | s)} + \log \int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da \\
&= - \int \pi(\cdot | s) \log \pi(\cdot | s) + \int \pi(\cdot | s) \log {\tilde{\pi}(\cdot | s)} + \int \pi(\cdot | s) \Big(\log \int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da\Big) \\
&= - \int \pi(\cdot | s) \log \pi(\cdot | s) + \int \pi(\cdot | s) \log \frac{\exp \left(Q_{\text{soft}}^{\pi}(s, \cdot) \right)}{\int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da} + \int \pi(\cdot | s) \Big(\log \int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da\Big) \\
&= - \int \pi(\cdot | s) \log \pi(\cdot | s) + \int \pi(\cdot | s) \log \exp \left(Q_{\text{soft}}^{\pi}(s, \cdot) \right) \\
&= \mathcal{H}(\pi(\cdot\vert s)) + \mathbb{E}_{a\sim \pi}[Q_{\text{soft}}^\pi(s,a)] \\
&= \text{left}
\end{align}
$$
- 以上式子证明过程如下：
- 其中，由式子
$$
\begin{align}
\mathcal{H}(\pi(\cdot\vert s)) + \mathbb{E}_{a\sim \pi}[Q_{\text{soft}}^\pi(s,a)] = - D_{\text{KL}}(\pi(\cdot|s) || \tilde{\pi}(s, \cdot)) + \log \int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da \\
\end{align}
$$- 其中 \(\tilde{\pi}\) 是按照 \(\tilde{\pi}(s) = \frac{\exp \left(Q_{\text{soft}}^{\pi}(s, \cdot) \right)}{\int \exp \left(Q_{\text{soft}}^{\pi}(s, a)\right) da}\) 迭代以后的策略
- 以上推导没有增加温度系数，默认温度系数为1，实际上，如果增加温度系数，有 \(\tilde{\pi}(s) = \frac{\exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi}(s, \cdot) \right)}{\int \exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi}(s, a)\right) da}\)
- 问题：如果策略的熵为0或温度系数为0，此时这个最优形式还能降级到 \(\pi^*(s) = \mathop{\arg\max}_a Q(s,a)\) 吗？
- 当策略的熵为0时，是可以的，此时策略必须是确定性策略，按照上述公式，动作只能取Q值最大的那一个
- 当温度系数为0时，此时Reward和DQN一致，最优解应该是 \(\pi^*(s) = \mathop{\arg\max}_a Q(s,a)\) 。考虑温度系数的版本 \(\tilde{\pi}(s) = \frac{\exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi}(s, \cdot) \right)}{\int \exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi}(s, a)\right) da}\)，当温度系数 \(\alpha\rightarrow 0\) 时，策略近似取Q值最大的动作，等价于DQN
- 当策略收敛以后，即经过迭代以后 \(\tilde{\pi} = \pi = \pi^*\)，此时有 \(D_{\text{KL}}(\pi(\cdot|s) || \tilde{\pi}(s, \cdot)) = 0\) 成立，即
$$ \mathcal{H}(\pi^*(\cdot\vert s)) + \mathbb{E}_{a\sim \pi^*}[Q_{\text{soft}}^{\pi^*}(s,a)] = \log \int \exp \left(Q_{\text{soft}}^{\pi^*}(s, a)\right) da $$ - 考虑温度系数后有：
$$ \alpha\mathcal{H}(\pi^*(\cdot\vert s)) + \mathbb{E}_{a\sim \pi^*}[Q_{\text{soft}}^{\pi^*}(s,a)] = \log \int \exp \left(Q_{\text{soft}}^{\pi^*}(s, a)\right) da $$ - 两边同时除以 \(\alpha\) 有
$$ \mathcal{H}(\pi^*(\cdot\vert s)) + \mathbb{E}_{a\sim \pi^*}[\frac{1}{\alpha}Q_{\text{soft}}^{\pi^*}(s,a)] = \log \int \exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi^*}(s, a)\right) da $$ - 由于
$$
V_{\text{soft}}^\pi(s_t) = \mathbb{E}_{a_t \sim \pi}[Q_{\text{soft}}^\pi(s_t, a_t)] + \alpha\mathcal{H}(\pi(s_{t}))
$$ - 所以有
$$
\frac{1}{\alpha}V_{\text{soft}}^\pi(s_t) = \mathbb{E}_{a_t \sim \pi}[\frac{1}{\alpha} Q_{\text{soft}}^\pi(s_t, a_t)] + \mathcal{H}(\pi(s_{t}))
$$ - 最优的策略 \(\pi^*\) 对应的V值 \(V^{\pi^*}(s)\) 为：
$$ V_{\text{soft}}^{\pi^*}(s_t) = \alpha \log \int \exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi^*}(s, a)\right) da $$
贝尔曼方程总结
贝尔曼方程
$$
\begin{align}
Q^\pi(s_t,a_t) &= r(s_t, a_t) + \gamma \mathbb{E}\_{s_{t+1} \sim p(s_{t+1}|s_t, a_t)}[V^\pi(s_{t+1})] \\\\
V^\pi(s_t) &= \mathbb{E}\_{a_t \sim \pi}[Q^\pi(s_t, a_t)]
\end{align}
$$贝尔曼最优方程
$$
\begin{align}
Q^{\pi^\*}(s_t,a_t) &= r(s_t, a_t) + \gamma \mathbb{E}\_{s_{t+1} \sim p(s_{t+1}|s_t, a_t)}[V^{\pi^\*}(s_{t+1})] \\\\
V^{\pi^\*}(s_t) &= \max_{a_t}[Q^{\pi^\*}(s_t, a_t)]
\end{align}
$$Soft贝尔曼方程
$$
\begin{aligned}
Q_{\text{soft}}^\pi(s_t, a_t) &= r(s_t, a_t) + \gamma \mathbb{E}\_{s_{t+1} \sim \rho_{\pi}(s)} [V_{\text{soft}}^\pi(s_{t+1})] \\\\
V_{\text{soft}}^\pi(s_t) &= \mathbb{E}\_{a_t \sim \pi} [Q_{\text{soft}}^\pi(s_t, a_t) - \alpha \log \pi(a_t \vert s_t)] \\\\
V_{\text{soft}}^\pi(s_t) &= \mathbb{E}\_{a_t \sim \pi}[Q_{\text{soft}}^\pi(s_t, a_t)] + \alpha\mathcal{H}(\pi(s_{t}))
\end{aligned}
$$Soft贝尔曼最优方程
$$
\begin{aligned}
Q_{\text{soft}}^{\pi^\*}(s_t, a_t) &= r(s_t, a_t) + \gamma \mathbb{E}\_{s_{t+1} \sim \rho_{\pi}(s)} [V_{\text{soft}}^{\pi^\*}(s_{t+1})] \\\\
V_{\text{soft}}^{\pi^\*}(s_t) &= \alpha \log \int \exp \left(\frac{1}{\alpha}Q_{\text{soft}}^{\pi^\*}(s, a)\right) da
\end{aligned}
$$- 待更新
